CUSTOM PCBA / Pet appliance control boards

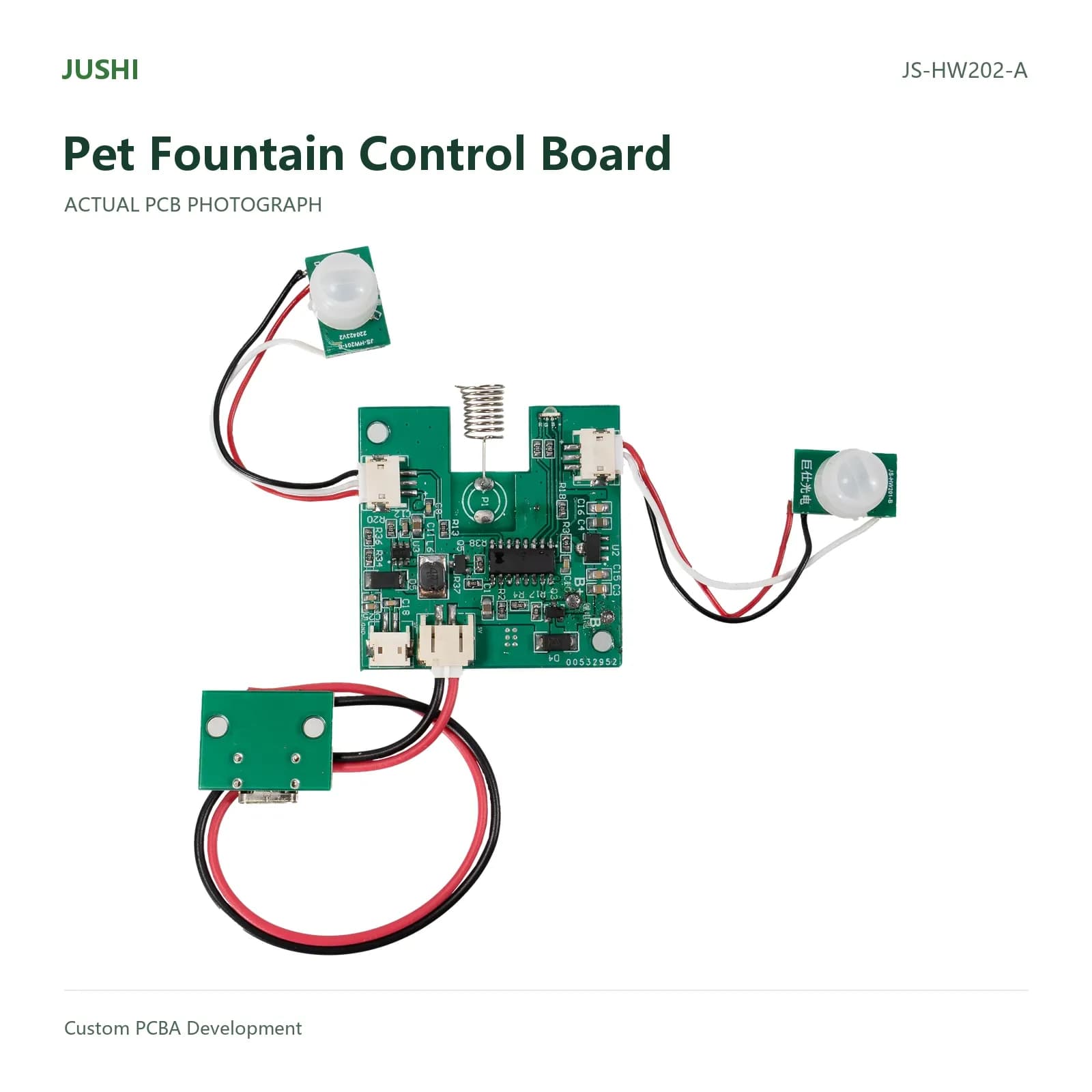

JS-HW202-APet Fountain Control Board
Jushi JS-HW202-A Pet Fountain Control Board solution, with PCB outline and interface layout tailored to your product structure.
Custom PCBFit your enclosure
FirmwareYour control logic
PrototypingThrough to production
Functions, power input, interfaces and dimensions are confirmed for each project.
01 / FUNCTIONS
Control functions for your product.
Define the functions and user interface, then align the PCB outline and connector layout.
Infrared sensing
Intermittent and continuous flow
Optional controlled heating
Battery or plug-in power design
Filter replacement reminder
Dry-run protection
Protection strategy assessed for the supply, load and operating conditions.
Remote app control
Assessed for operating distance, user interaction and project requirements.
02 / CUSTOMIZATION
Outline, interfaces
and firmware.
Start with an enclosure, a function list or a reference product.
| Model | JS-HW202-A |
|---|---|
| Application | Pet Fountain Control Board |
| PCB outline | Tailored to your enclosure |
| Interfaces | Confirmed for the project modules |
| Power input | Confirmed per project |
| Services | Design / Firmware / Prototyping / Manufacturing & testing |
Final specifications follow the agreed design and approved prototype.
Custom development
Power input, functions, interfaces and dimensions are confirmed against project requirements. Functions are configured for each project and confirmed against the agreed design and approved prototype.
Solution design, PCB design, firmware development, prototyping, manufacturing and testing.
03 / PROCESS
From requirements to production.
Requirements
Confirm use cases, functions, enclosure information and project goals.
Solution design
Align circuitry, firmware, PCB outline and interfaces.
Prototype approval
Build prototypes, integrate with the product and confirm functionality.
Manufacturing & testing
Produce against the approved specification and agreed testing requirements.
Project process
Requirements / Solution design / Prototype approval / Volume production.
04 / FAQ
Before we start.
Can the PCB fit an existing enclosure?
We can assess PCB outline, mounting, buttons and interfaces. Share drawings, dimensions or a reference product for evaluation.
What information is needed?
Share functions, power input, enclosure details, expected quantities and development schedule. We can begin with the key requirements.
Can functions be added or adjusted?
Function combinations, firmware logic and hardware changes are assessed for each project, then prototyped against the agreed design.
Tell us about your product.
Share functions and enclosure details to define a suitable PCBA solution.
